Sencan Automation Machinery Co., Ltd. is a professional manufacturer of non-standard customized machine, integrating design, manufacturing and sales. As the earliest non-PVC infusion cap assembly machine supplier in China, Sencan has been striving for innovation, focusing on customer needs and creating value for more than 10 years. Sencan continues to focus on the needs of users, research consumables overall assembly solution, has developed a number of special equipment. Sencan has a professional assembly after-sales service team to create high-quality solutions for users.
Equipment features
1.When installing the needle, assemble it at an inclined angle to avoid damaging the needle tip.
2. The needle hopper is equipped with a needle tying device to prevent the occurrence of disorderly needles.
3. The cover plate of the needle hopper is easy to disassemble, and each needle installation can be completed within 3 minutes.
4. The production cycle is between 10-15 seconds, with high production capacity and good stability.
5. Adopting a new type of adsorption mechanism (already patented) to replace traditional vacuum adsorption methods and reduce production electricity consumption.
6.Including automatic counting cartoning machines, labelling machines, etc.
Properties
| Applicable products |

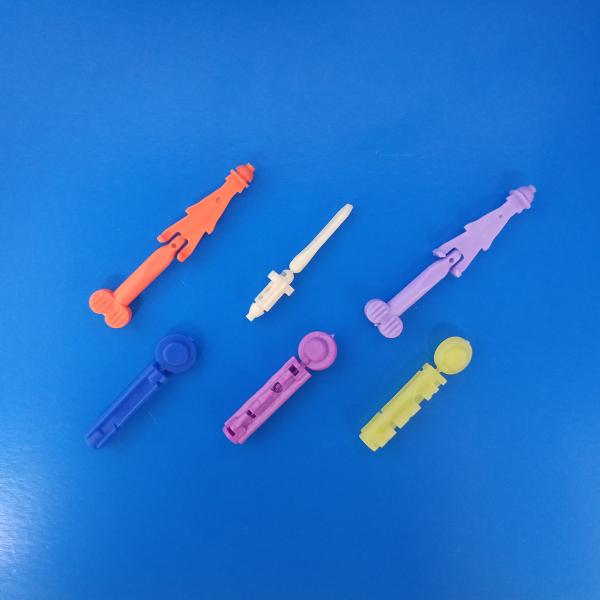

Peripheral blood collecting needles, blood lancet, adjustable lancet, safety lancet |
| Production speed |
64 or 128 cavities |
| Rate of qualified product |
Above 98% |
| Rate of operation rate |
Above 95% |
| Power source |
AC380V, 50Hz,3kw/h, air pressure 7kg/m3 |
| Dimension |
Actual size varied with production speed |
| Weight |
About 2850kg |
| Operator |
1set/person |
|
|
Integrated production line for common blood collection needles with high production efficiency, high quality and fast run rate Images
|
