Servo Motor Driven Medical Product Assembly Machine for Non-PVC Soft Bag and Aluminum-Plastic Caps

Name: Servo Motor Driven Medical Product Assembly Machine for NonPVC Soft Bag and AluminumPlastic Caps
Brand: Sencan
Price: 1 USD

Brand Name : Sencan

Model Number : SC-PT-342

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Deliberation

Payment Terms : T/T, L/C

Supply Ability : 3 sets per

Delivery Time : 90 work days

Packaging Details : wooden case

Assembly Speed : 4500-22000 per/hour

Qualified Rate : 99%

Function : Automated assembly of medical products

Colour : Stainless steel metallic color

Frequency : 50Hz

Power Source : Electric

Applicable Products : Insulin pen needle

Active Force : Servo motor or cylinder

Application : Medical Product Assembly

Product Model : Medical Infusion Bottle Caps

Contact Now

Features

1. Used for automatic assembly for spike ports and injection ports of non-PVC double tube soft bag, aluminum-plastic PC infusion ports, PP and polypropylene dosing plugs.

2. All materials of the equipment are made of stainless steel + aluminum alloy, in compliance with ISO and GMP pharmaceutical packaging requirements.

3. Material for aluminum plastic cap sealing is made of titanium alloy, surface mirror polished to ensure smooth and nice sealing quality.

4. Rotation of sealing knife is driven by gear, each cap is sealed separately, achieving high qualified rate.

5. Each workstation is equipped with detection to make sure correctness and accuracy of assembling.

6. Main power comes from servo motor +indexing drive, which ensure high precision assembly.

7. PLC control system, touch screen HMI operation.

Properties

Applicable products	Aluminum-plastic caps&ports PC ports, spike ports and injection ports for non PVC soft tube IV bag
Production speed	8000-15000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	L3500×W3400×H1800(mm) Actual size varied with different production speed
Weight	About 3000kg
Operator	1set/person

China Servo Motor Driven Medical Product Assembly Machine for Non-PVC Soft Bag and Aluminum-Plastic Caps factory

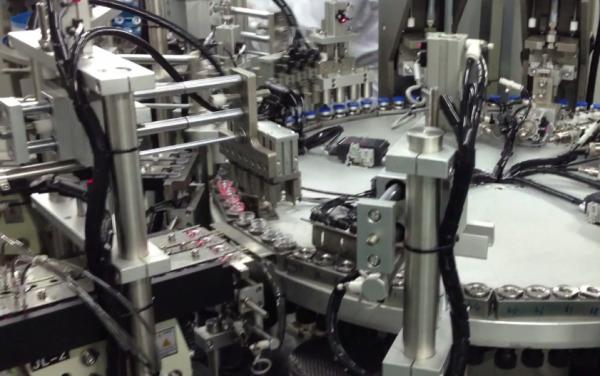

Servo Motor Driven Medical Product Assembly Machine for Non-PVC Soft Bag and Aluminum-Plastic Caps Images
